Main Wheel Assemblies
- Limit radial static test at 153% of rated static load
- Ultimate radial static load test at 266% or rated static load
- Overpressure test at 350% of max rated wheel pressure
- Roll test of 1000 miles at full static load and 110% wheel rated pressure
10 inch
| Wheel Size | Static Load Rating (lbs) | Assembly Weight (lbs) | Brake Disc Thickness (in) | Axle Diameter (in) | Approved Tire Sizes | Certification | Part Number | Quote |
|---|---|---|---|---|---|---|---|---|
| 8.50-10 | 1800 | 12.98 | 0.19 | 1.25 | 29x11.0-10, 8.50-10, H31x11.0-10 | TSO | 100-1007 | |
| 8.50-10 | 1800 | 13.52 | 0.25 | 1.25 | 29x11.0-10, 8.50-10, H31x11.0-11 | TSO | 100-1007B | |
| 8.50-10 | 2225 | 13.84 | 0.25 | 1.5 | 29x11.0-10, 8.50-10, H31x11.0-12 | TSO | 100-1008 | |
| 8.50-10 | 2225 | 13.84 | 0.25 | 1.5 | 29x11.0-10, 8.50-10, H31x11.0-13 | TSO | 100-1008A | |
| 8.50-10 | 2225 | 13.3 | 0.19 | 1.5 | 29x11.0-10, 8.50-10, H31x11.0-14 | TSO | 100-1008B | |
| 8.50-10 | 1800 | 12.43 | 0.19 | 1.25 | 29x11.0-10, 8.50-10, H31x11.0-15 | TSO | 100-1009 | |
| 7.50-10 | 2225 | 13.27 | 0.25 | 1.5 | 29x11.0-10, 8.50-10, H31x11.0-16 | TSO | 100-1010 | |
| 7.50-10 | 3200 | 19.2 | 0.305 | 1.5 | 6.50-10, 7.50-10, 8.50-10 | TSO | 100-1024 | |
| 7.50-10 | 3200 | 19.6 | 0.305 | 1.5 | 6.50-10, 7.50-10, 8.50-10 | TSO | 100-1024C | |
| 6.50-10 | 3500 | 21.3 | 0.45 | 1.5 | 6.50-10, 7.50-10 | TSO | 100-1027 |
4 inch
| Wheel Size | Static Load Rating (lbs) | Assembly Weight (lbs) | Approved Tire Sizes | Certification | Part Number | Quote |
|---|---|---|---|---|---|---|
| 8.00-4 | 1100 | 2.66 | 8.00-4 | PMA, TSO | 40-208 |
5 inch
Loading specifications for 5 inch…
6 inch
Loading specifications for 6 inch…
8 inch
Loading specifications for 8 inch…

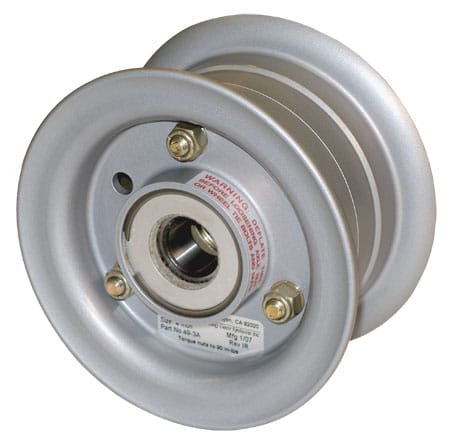

Nose Wheel Assemblies
- Limit radial static test at 153% of rated static load
- Ultimate radial static load test at 266% or rated static load
- Overpressure test at 350% of max rated wheel pressure
- Roll test of 1000 miles at full static load and 110% wheel rated pressure
5 inch
Loading specifications for 5 inch…
6 inch
Loading specifications for 6 inch…
